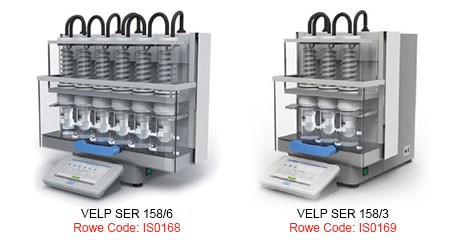

| Positions: | SER 158/3 3-positions
SER 158/6 6-positions |
| Max. Capacity: | SER 158/3 21 samples/day/unit
SER 158/6 42 samples/day/unit |
| Scalability: | SER 158/3 12-pos. (up to 4 units)
SER 158/6 24-pos. (up to 4 units) |
| Display: | 7” colour touch screen - extractable ControlPad |
| Solventi Accettati: | Capable of being used with the majority of solvents |
| Solvent Recovery: | > 90% |
| Reproducibility (RSD): | ≤ 1% |
| Automation: | Immersion, Removing, Washing, Recovery, Cooling |
| Lighting: | LED lights show 3/6 active positions |
| Heating Element: | Glass ceramic – 3/6 positions independent switch on/off |
| Sample Size: | 0.5 to 15 g in 33x80 mm thimbles (generally 2-3 g) |
| Seals: | Viton, Butyl, and Vaflon |
| Condensers: | Titanium (VELP Patent Pending) |
| Interfaces: | 3 x USB (balance, mouse, USB stick), Ethernet (Pc) |
| Result Calculation: | Automatic, Archived on ControlPad |
| Water Consumption: | from 1.0 l/min |
| Dimensions (WxHxD): | SER 158/3 358x546x450 mm - 14x21,5x17,7 inch
SER 158/6 546x546x450 mm - 21,5x21,5x17,7 inch |
| Dimensions with ControlPad: | SER 158/3 358x546x570 mm - 14x21,5x22,4 inch
SER 158/6 546x546x570 mm - 21,5x21,5x22,4 inch |
| Weight (SER 158/ControlPad): | SER 158/3 Kg 29 / 1 - 64 / 2,2 lb
SER 158/6 Kg 36 / 1 - 80,3 / 2,2 lb |
| Power Supply: | SER 158/3 115/230 – 50/60 V-Hz
SER 158/6 115/230 – 50/60 V-Hz |
| Power Consumption: | SER 158/3 630/850 W
SER 158/6 630/850 W |
