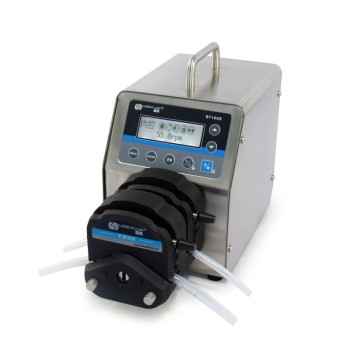

IP0821 PUMP PERISTALTIC, INCLUDES YT25 HEAD, SINGLE CHANNEL (4 ROLLER), TO SU IT #15, #24, #35 AND #36 TUBING. 0.17-720mL/min FLOW RATE WITH LCD

BT100SYZ25x2black

BT100S basic variable-speed peristaltic pump provides flow range from 0.00011 to 720 mL/min with variable pump heads and tubings. It provides not only the basic functions such as reversible direction, start/stop and adjustable speed, but also Time Dispense Mode and Anti-Drip function. With MODBUS RS485 interface, pump is easy to communicate with external device, such as PC, HMI or PLC.

SPECIFICATIONS

Flow range:	0.0001-720 mL/min
Speed range:	0.1-150 rpm
Speed resolution:	0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
Flow accuracy:	0.5%
Power supply:	AC 100-240V,50Hz/60Hz
Power consumption:	< 40W
External control on/off signal:	5V, 12V (standard), 24V (optional). 226 x 150 x 238 mm
Communication interface:	RS485 MODBUS interface
Operating condition:	Temperature 0-40°C; Relative humidity <80%
Dimensions (L x W x H):	226 x 150 x 238 mm
